HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules

Name: HM1237NL HM1237NLT Dual Port Ethernet BMS Transformer Modules
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : HM1237NL / HM1237NLT

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

PN : HM1237NL / HM1237NLT

Port : DUAL

POE : Without

Mounting : SMD

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Part Number : BMS Transformer/Choke

Contact Now

HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules

BMS Transformer, 2-Ch, 600 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number	HM1237NL / HM1237NLT
Part Status	Active
AEC-Q200	Yes
Application-Lan	BMS Transformer/Choke
Construction	Open Frame
Isolation Voltage	2500 VRMS
Number of channels	2
Package	SMT
Rohs Compliant	YES-RoHS-6
Temperature	- 40℃ TO +125℃
Working Voltage	600
Construction	OPEN FRAME
Package Height (Inches)	0.225
Package Height (mm)	5.72
Package Length (Inches)	0.455
Package Length (mm)	11.56
Package Width (Inches)	0.375
Package Width (mm)	9.53
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose LINK-PP

Quality

World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.
Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .

Manufactured under strict controls.

ISO 9001:2008

UL Certification

Reach Cetitifaction

RoHS compliance

OEM Of TE(Tyco) For 9 Years

Active Environmental policy

Every module tested (not just batch tested)

Main Customers

Texas Instruments	INTEL	SAMSUNG	FLUKE	EKF	HUAWEI	IBM	CISCO
FLEXTRONICS	JABIL	Foxconn	CANON	Arduino	--	---	---

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments

LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.
Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board
HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules

LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti

Product Tags:

smd transformer

smt magnetic transformer

China HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules wholesale

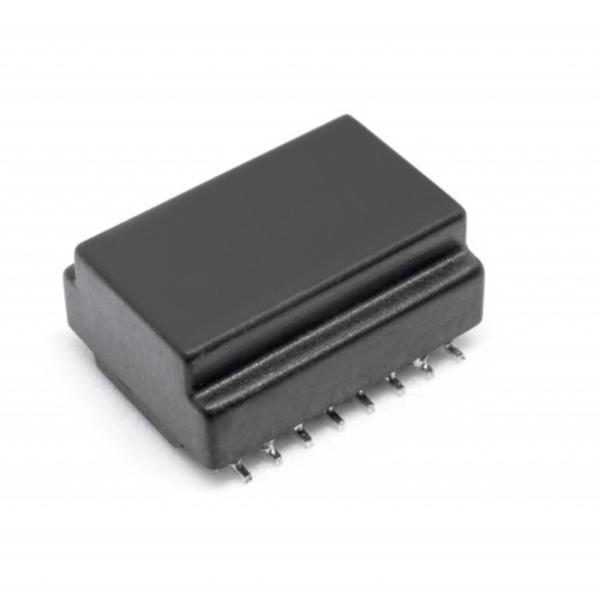

HM1237NL / HM1237NLT Dual Port Ethernet BMS Transformer Modules Images
